RV AC Capacitor & Control Board Repair
Most common RV AC repair in Broward County - capacitor and board replacement for Dometic and Coleman-Mach units. Same-day service at your location.
RV AC Capacitor and Control Board Repair in Fort Lauderdale

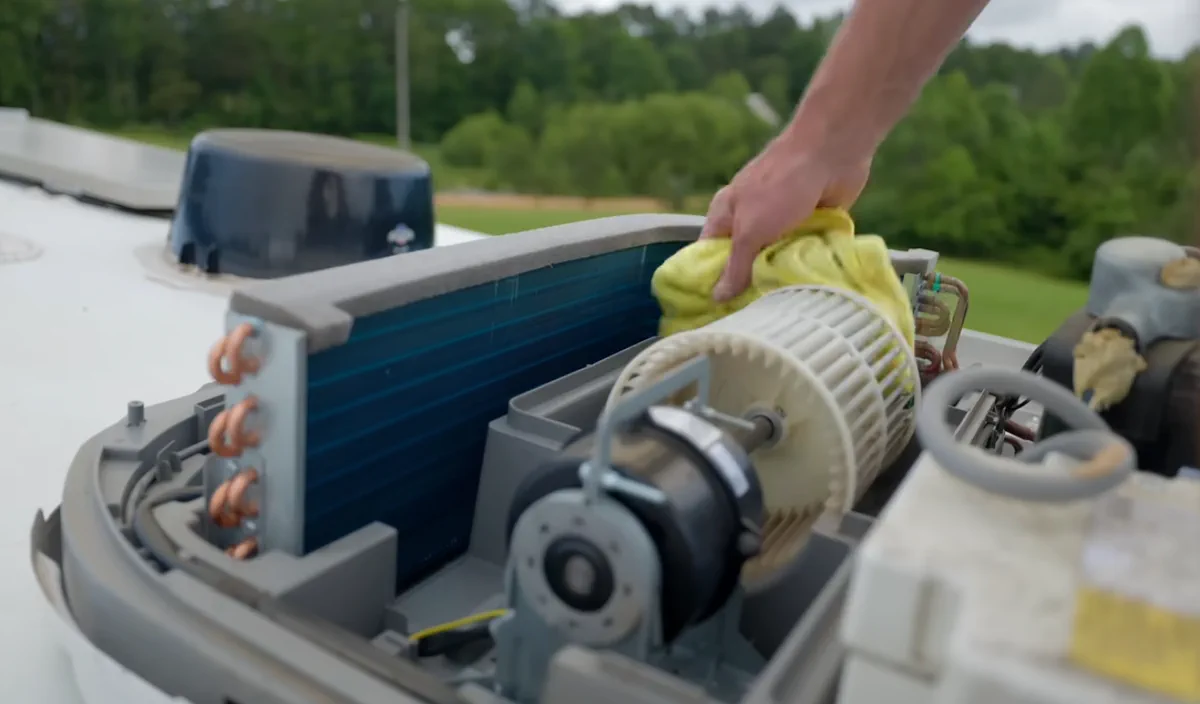

Capacitor failure is the most common RV air conditioning repair call we receive throughout Broward County. In Fort Lauderdale's year-round heat, RV AC capacitors work harder and fail faster than in any other climate in the continental United States. The run capacitor in a rooftop Dometic or Coleman-Mach AC unit is a small cylindrical electrical component that provides the starting torque the compressor motor needs to begin its run cycle. When it fails - and in South Florida it will fail, typically within 3 to 7 years of installation - the compressor cannot start, and your AC unit becomes a very expensive ceiling fan.
The symptoms are unmistakable: you hear the AC unit attempt to start (a loud hum or buzzing sound lasting 2 to 5 seconds), then it shuts off. The thermostat may display a fault code if you have a digital thermostat compatible with your unit. The interior of the RV continues to heat up, and you are left without cooling in Broward County's summer heat. This is a common emergency call we receive at T.Y. Park in Hollywood, CB Smith Park in Pembroke Pines, and campgrounds throughout the county.
Control board failures are the second most common AC electrical repair. The control board manages communication between the thermostat and the AC unit's compressor and fan motors. In Fort Lauderdale, control boards are frequently damaged by the voltage spikes that accompany the county's regular afternoon thunderstorms - particularly when the RV is plugged into an older shore power pedestal without a high-quality surge protector. Salt air corrosion on board terminals is a secondary cause of premature board failure in coastal Broward communities.
Warning Signs of Capacitor or Board Failure
- AC unit hums for a few seconds then shuts off without starting the compressor
- Thermostat shows a fault code (E1, E2, L1, LO, etc. depending on the Dometic model)
- AC powers on (lights up, fan runs) but compressor never starts
- Unit runs for a few minutes then shuts off and will not restart until it cools down
- Visually bulged or leaking capacitor can (visible when the shroud is removed)
- Burning smell from the rooftop unit
Our Repair Process
Safe Power Isolation
We shut off shore power or the generator and isolate the AC circuit at the breaker before accessing the rooftop unit. We safely discharge any stored charge in the existing capacitor before handling it - this is a step that should never be skipped and is a risk if attempted without proper training.
Capacitor and Board Testing
Using a dedicated capacitor tester, we measure the existing capacitor's microfarad value against its rated value. A capacitor testing more than 10% below its rated value needs replacement even if it has not fully failed yet. We test the control board's input and output voltages to confirm whether it is functioning correctly or has a fault.
Component Replacement
We install the correct OEM-specification replacement capacitor or control board, properly secure all terminal connections, and ensure the replacement component is rated for the heat environment it will operate in. We do not use undersized generic components.
Test Cycle and Verification
We restore power and run the AC unit through a complete start-up cycle, checking compressor amperage draw, verifying that the compressor starts cleanly without the run capacitor reaching its stress threshold, and confirming that cold air is reaching the vents before we close up the unit.
Pricing
| Service | Estimated Range |
|---|---|
| Service Call / Diagnosis | $89 - $149 |
| Run Capacitor Replacement | $95 - $175 |
| Control Board Replacement | $175 - $395 |
| Dual Capacitor (start + run) | $125 - $225 |
| Prices shown are estimates. Final pricing provided after on-site diagnosis. Parts cost separate. | |
FAQ
The run capacitor stores and releases electrical energy to help the compressor motor start and maintain running torque. Without a properly functioning capacitor, the compressor motor cannot build up enough starting torque and either hums and fails to start, or runs with reduced efficiency and draws excess current.
The most common symptom is the AC unit making a loud humming or buzzing noise for a few seconds, then shutting off. You may hear the AC trying to start but failing to do so. In some cases the unit simply will not respond at all. A failed capacitor is often visually identifiable by a bulged or leaking top on the cylindrical component inside the unit.
Capacitor replacement is typically one of the fastest RV AC repairs. Our certified technicians can usually complete the diagnosis, part swap, and test cycle in 45 to 90 minutes. We carry the most common Dometic and Coleman-Mach capacitors in our service vehicles for same-day repair throughout Broward County.
Heat is the primary enemy of run capacitors. Every 10-degree Celsius rise in operating temperature roughly halves the expected service life of an electrolytic capacitor. In Broward County, rooftop AC units operate in ambient temperatures that regularly exceed 95 to 100 degrees Fahrenheit - far above the temperature ratings those capacitors were tested at in a northern climate. Salt air corrosion of the capacitor's metal can further accelerates failure.
The control board (also called the circuit board or PCB) manages the AC unit's operations - thermostat communication, compressor staging, fan speed control, and fault protection. Control boards fail from lightning-induced voltage spikes during Broward County's frequent thunderstorms, from corrosion on the board's solder joints in the salt air environment, and from heat cycling over time. Symptoms include the unit powering on but not responding to thermostat commands, specific components not running, or fault codes displayed on the thermostat.
Technically yes, but we do not recommend it unless you have electrical training. The capacitor is part of a circuit that involves 120V AC power, and the capacitor itself stores a charge even after the power is disconnected that can cause a serious electrical shock. Our certified technicians safely discharge the capacitor before handling it and verify the replacement is correctly specified before installation.
Capacitor replacement for a Dometic or Coleman-Mach RV AC unit in Fort Lauderdale typically runs $95 to $175 including the capacitor and labor. The service call diagnostic fee of $89 to $149 is applied toward repair if you proceed with the same visit. Final pricing is confirmed after we identify the specific capacitor needed for your unit.
Modern Dometic and Coleman-Mach control boards display fault codes on compatible thermostats to indicate the type of failure detected. Common fault codes include high pressure lockout (refrigerant or condenser issue), locked rotor (compressor won't start), and low ambient lockout (temperature too low to operate the unit). Our technicians carry fault code reference guides and diagnostic tools to interpret and address the specific fault.
Yes. These are three of the most common Dometic rooftop AC product lines and all are within our service scope. The Dometic Brisk Air and Brisk Air II are the most common units we work on in Broward County. We carry capacitors and control boards for Brisk Air, Penguin, and Blizzard NXT units in our service vehicles.
A properly installed OEM-specification capacitor should last 3 to 7 years in Fort Lauderdale's climate. We use capacitors rated to the manufacturer's original voltage and microfarad specification - not undersized generic replacements. If a capacitor fails again within 1 to 2 years, we look for a secondary cause such as overheating from dirty coils or low refrigerant charge that is causing the compressor to work excessively hard.
