RV Shore Power Service - Fort Lauderdale FL
Shore power cord, inlet, and connection diagnosis throughout Broward County. Surge protector consultation and campground pedestal issue resolution.

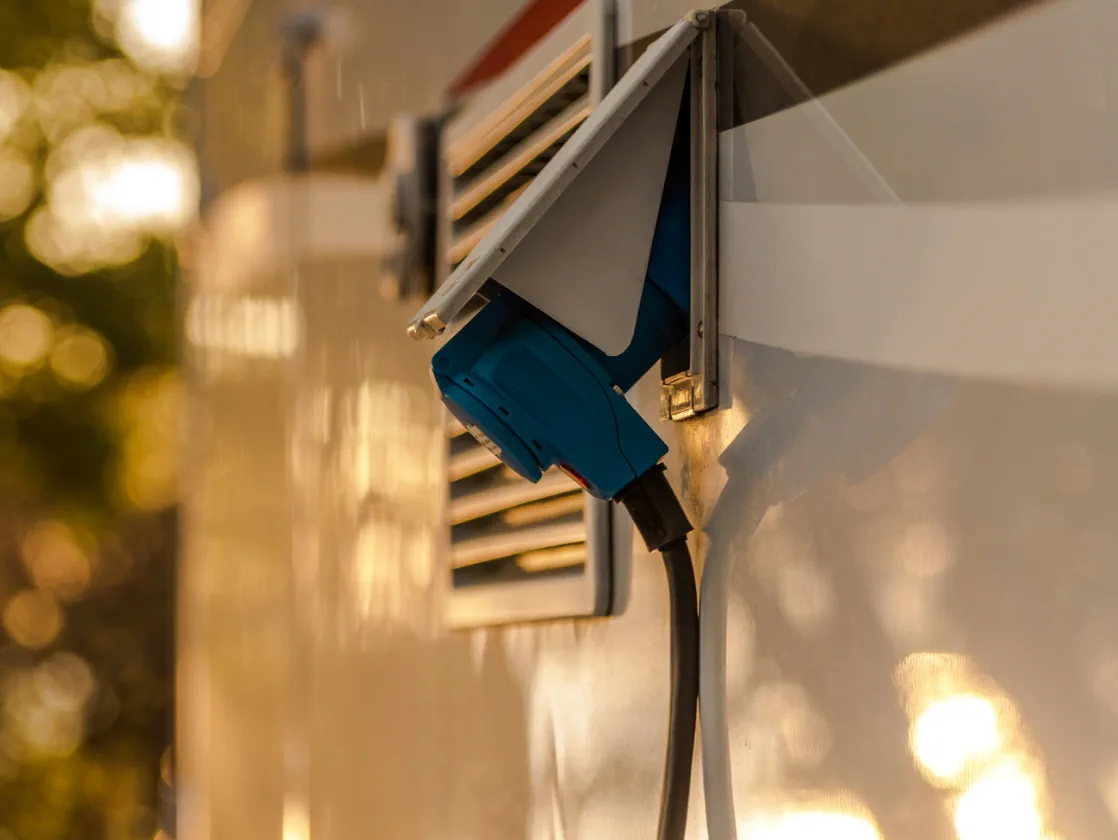

RV Shore Power Service in Fort Lauderdale
Shore power issues are among the most common electrical problems we see at Broward County campgrounds. The combination of aging campground infrastructure, Florida's corrosive salt air environment, and the voltage spikes from frequent afternoon thunderstorms creates a challenging environment for shore power connections throughout the county. From T.Y. Park in Hollywood to CB Smith Park in Pembroke Pines, we regularly diagnose and address shore power problems that are leaving RV owners without reliable electrical service.
Our certified technicians check both the RV's shore power inlet and cord and the campground's pedestal when diagnosing shore power problems - because many issues originate at the pedestal, not inside the RV. We carry surge protectors, shore power adapters, inlet components, and cord repair materials on our service vehicles for same-day resolution of most common shore power issues.
Shore Power Services We Provide
- Shore power cord inspection and replacement (30-amp and 50-amp)
- Shore power inlet replacement (30-amp and 50-amp)
- Pedestal voltage and frequency testing
- Surge protector and EMS installation consultation
- 30/50-amp adapter and dogbone inspection
- Transfer switch diagnosis
- GFI outlet reset and diagnosis
- Load management troubleshooting
Pricing
| Service | Estimated Range |
|---|---|
| Shore Power Inspection and Diagnosis | $89 - $149 |
| 30-Amp Inlet Replacement | $125 - $225 |
| 50-Amp Inlet Replacement | $175 - $325 |
| Shore Power Cord Replacement (30A) | $125 - $225 |
| Shore Power Cord Replacement (50A) | $195 - $375 |
| Surge Protector EMS Installation | $125 - $250 |
| Prices shown are estimates. Final pricing provided after on-site diagnosis. Parts cost separate. | |
FAQ
Shore power is the external 120V AC electrical connection at a campground pedestal or home outlet that powers your RV's AC appliances and charges the battery through the converter. Most RVs connect via a 30-amp (single phase, 120V, NEMA TT-30) or 50-amp (split phase, 240/120V, NEMA 14-50) cord. The 50-amp connection provides significantly more power capacity, making it the preferred connection for large Class A motorhomes with multiple AC units.
A breaker that trips immediately on shore power connection usually indicates either a fault in the RV's electrical system (a short or ground fault), a malfunctioning appliance that draws excess current on startup, or a campground pedestal that is providing incorrect voltage. We check both the RV's electrical system and the pedestal's voltage before assuming the problem is inside the RV.
Yes. Older shore power pedestals at some Broward County campgrounds have corroded wiring, worn breakers, and loose connections that can deliver voltage fluctuations. Lightning strikes near the campground's electrical distribution system can also send spikes through shore power pedestals. A Progressive Industries or Southwire surge protector/EMS (Energy Management System) is a worthwhile investment for any RV - it protects your converter, appliances, and electronics from both over-voltage and under-voltage events.
A slightly warm cord under heavy load is normal. A hot cord - where you cannot hold the connector comfortably - is not. A hot shore power cord indicates excessive resistance, typically from a corroded connector, a loose contact at the pedestal, or a cord that is undersized for the load. A hot cord is a fire risk and should be disconnected immediately. Our technicians inspect shore power connectors and cords as part of all electrical service calls.
Yes. The shore power inlet (the shore power socket on the side of your RV) can corrode, develop loose contacts, or crack the housing over time. We replace standard 30-amp and 50-amp shore power inlets on-site at your Broward County location.
A 30-amp/120V service provides a maximum of 3,600 watts of power. A 50-amp service provides two 120V legs of up to 12,000 watts combined - over three times the power capacity. Large Class A motorhomes with two AC units, electric water heater, and large washer-dryer require 50-amp service to run everything simultaneously. Running a 50-amp RV on a 30-amp pedestal with an adapter limits which systems can run at once.
This is a load management issue on 30-amp service. An RV air conditioner draws 12 to 16 amps when the compressor cycles. A microwave draws 10 to 12 amps. Combined, they can exceed the 30-amp limit. Some newer RVs have an automatic load management system that temporarily drops the AC when the microwave is in use. If yours does not, be mindful of running high-draw appliances simultaneously on 30-amp connections.
Converting a 30-amp RV to 50-amp service is a significant electrical project that involves upgrading the shore power inlet, wiring, breaker panel, and possibly the converter/inverter. It is not a simple swap. Whether this upgrade makes sense depends on the RV's overall electrical system capacity and your power needs. Our technicians can assess your RV and discuss the scope and cost of such an upgrade.
This symptom often indicates low frequency or a faulty connection on one of the two 120V legs (for 50-amp systems). A faulty neutral connection at the shore power pedestal is another common cause. Our technicians use a quality digital multimeter to check both voltage and frequency at the shore power inlet and at the panel to identify connection issues.
No. If you see visible damage to a shore power pedestal - cracked housing, burn marks, loose cover, or sparking when you plug in - do not use that pedestal. Report it to campground management and request a different site. Damaged pedestals can deliver incorrect voltage, intermittent connections, or shock hazards.
Serving Fort Lauderdale and All of Broward County
When your RV needs electrical system repair in Fort Lauderdale or anywhere in Broward County, our certified mobile team comes directly to your location - no tow truck required, no dealership wait. We dispatch to all Broward cities including Hollywood, Pembroke Pines, Coral Springs, Davie, Deerfield Beach, Pompano Beach, Sunrise, Miramar, Hallandale Beach, Plantation, Lauderhill, and Weston. Most calls receive a same-day or next-morning appointment.
South Florida's climate creates specific challenges for RV systems. Year-round temperatures averaging 77°F, with summer highs in the 90s and humidity regularly topping 80%, put RV components under constant thermal stress. Systems that function fine in cooler climates often show accelerated wear here. Our technicians are trained specifically on Florida climate impacts - from salt air corrosion affecting coastal Broward rigs to the effect of standing water after summer rainstorms on rubber seals and underbelly components.
We regularly service RVs at Broward County's most popular campgrounds: T.Y. Park (Topeekeegee Yugnee Park) in Hollywood, Easterlin Park in Oakland Park, CB Smith Park in Pembroke Pines, Quiet Waters Park in Deerfield Beach, and Tradewind Park in Coconut Creek. Give us your campsite number when you call and we'll come directly to your rig - no need to unhook or move your trailer.
Our team carries common replacement parts for all major RV brands including Winnebago, Forest River, Thor, Jayco, Keystone, Grand Design, Coachmen, Airstream, Tiffin, and Newmar. For less common components, we source parts same-day from Broward's RV supply distributors, keeping most repairs to a single visit. We provide written estimates before any work begins - no surprises on your final bill.
Ready to Get Your RV Back on the Road?
Our certified mobile technicians serve all of Broward County - 7 days a week, including weekends and holidays.
