RV Slide-Out Adjustment - Fort Lauderdale FL

RV slide-outs require periodic alignment because the mounting hardware, rollers, and guides experience wear over time and because the RV's frame flexes slightly with each trip. In Florida's climate, heat cycling causes expansion and contraction of the slide room's structural components, which can gradually shift the slide room's alignment relative to the RV body. An out-of-alignment slide creates uneven seal compression, gaps that allow air and water infiltration, and excess wear on the motor and gear rack.

Schwintek systems use a software-based travel limit that tells the control board how far to move the slide in each direction. When the travel limits are incorrectly set, the slide either does not extend fully (leaving a gap at the outer edge of the slide room opening) or tries to extend too far and stresses the seal. Travel limit adjustment involves accessing the control board programming mode and resetting the full-in and full-out positions. This is a calibration procedure, not a mechanical adjustment.

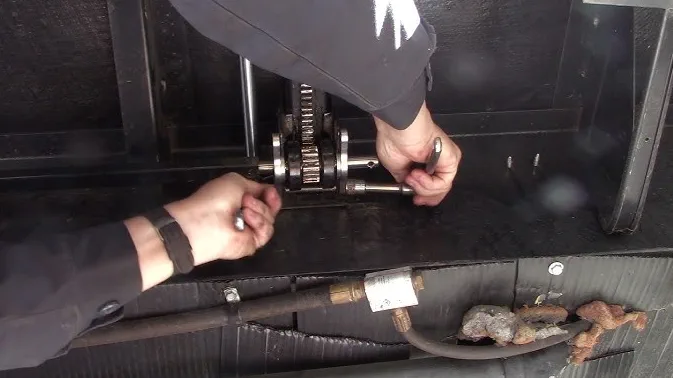

Manual Lippert-style slide adjustments involve shim adjustments at the slide mounting points or roller height adjustments - these require specific knowledge of your system's adjustment method and can make the alignment worse if done incorrectly. We do not recommend attempting this without experience. For Schwintek travel limit calibration, the procedure is documented in Lippert's service manuals but requires a specific button sequence that varies by control board revision.

A sagging one-sided slide room is typically caused by either a failed roller or guide on the low side, a missing or compressed shim at the mounting point, or a Schwintek motor that has lost steps and is no longer synchronized with the opposite motor. Our technicians diagnose the specific cause before recommending a repair approach.

A properly adjusted slide-out should stay aligned for 2 to 4 seasons of normal RV use before minor tweaks are needed. More frequent realignment is sometimes needed if the RV travels rough roads regularly or if the slide-out is used very frequently. Annual inspection of seal compression and slide room gap is a good habit for Broward County full-timers.

An out-of-alignment slide-out creates several downstream problems: uneven seal wear leading to seal failure and water intrusion, excess stress on the motor as it fights against misaligned guides, accelerated gear rack wear, and potential structural damage to the slide room if it is being forced into an incorrect position by the motor. Addressing misalignment early is significantly less expensive than addressing the downstream damage.

Yes. Our service vehicles carry the Lippert alignment tools and measurement references needed for the most common Lippert slide-out systems. We are familiar with the shimming procedures for Lippert's electric motor slide-out, the roller adjustment procedure, and the synchronization setup for multi-motor installations.

Alignment adjustment including diagnosis and calibration typically runs $150 to $350 for a standard single slide-out room. Complex multi-slide or dual-motor systems take longer and run toward the higher end. The service call fee of $89 to $149 applies to all visits.

Possibly. Scraping sounds during slide-out operation can indicate the slide room is rubbing against the opening framing due to misalignment, debris trapped in the slide's travel path, or a worn roller that has lost its protective surface. Our technicians listen to the nature of the noise, inspect the travel path, and determine whether alignment, lubrication, or a mechanical repair is the appropriate fix.

Travel limit programming corrects how far the slide travels - it cannot correct a physically out-of-square slide room. If the slide room is tilted or racked (not square in its opening), mechanical adjustment at the mounting points is needed. Correct travel limits are important for ensuring the motor does not push the slide beyond its mechanical limits, but they are not a substitute for proper physical alignment.
