RV Slide-Out Motor Replacement - Fort Lauderdale FL

A motor failure typically presents as the slide-out attempting to move but stopping after a partial travel, the motor making a grinding or straining noise without the slide moving, or no movement at all even though the control board appears to be sending a command signal (you can hear a relay click). A control board failure often presents as no response at all from the controls, no relay click, or erratic behavior where the slide sometimes responds and sometimes does not. Our technicians test the control signal at the motor connector before recommending motor replacement.

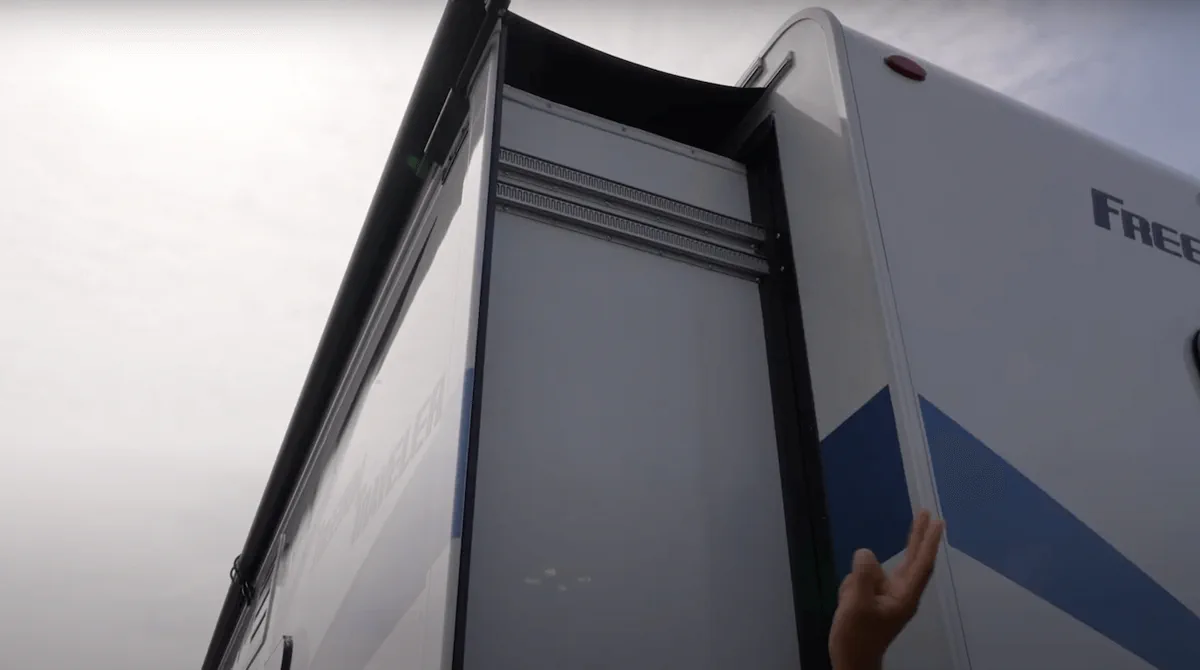

Lippert and Schwintek motor replacements typically take 2 to 3 hours at your campsite. The motor is accessed through the underside of the slide room or through a designated service panel, depending on the RV model. We bring the correct motor for your system, complete the swap, and test the slide through multiple full travel cycles before leaving.

No. Lippert manufactures multiple motor types for different slide-out systems - the HappiJac cable system, the Power Gear electric motor system, and several Schwintek variants. The motors are specific to the system type and must be matched correctly. Our technicians identify your exact system before ordering or bringing replacement parts.

The Schwintek in-wall system uses smaller gear motors (typically 12V DC) that are integrated into the wall of the slide-out room rather than mounted under the chassis. Each Schwintek motor drives a gear rack that is embedded in the slide-out wall structure. A standard Schwintek slide-out has two motors (one on each side of the slide room) that must be synchronized. When one motor fails, the slide travels unevenly - one side moves while the other stays put, which is a signature Schwintek failure symptom.

Schwintek motor replacement (one motor) typically runs $350 to $600 including the motor and labor. If both motors need replacement (common when one motor has failed but the other is aged and worn), we may recommend replacing both in a single service visit to avoid a second trip. Diagnosis runs $89 to $149.

In most RV models, Schwintek motors are accessible through a small access panel on the slide-out room wall or through the interior base trim area. In some models, limited wall panel removal is needed. Our technicians are familiar with common Schwintek access procedures across most major RV brands and can advise on the access requirements for your specific model.

Kwikee (manufactured by BAL) is an older cable-drive slide-out system found on many travel trailers and fifth wheels built in the late 1990s through mid-2000s. It uses a rack and cable system driven by a centrally mounted electric motor. Kwikee systems are reliable but parts have become harder to source as the system ages. We service existing Kwikee systems and can discuss replacement options if parts are unavailable.

It depends on the operating hours and age of the other motor. If the RV is relatively new (under 7 years) and the surviving motor tested healthy, replacing only the failed motor is reasonable. If the RV is older and has accumulated significant travel, replacing both motors in a single service visit makes sense to avoid a second trip within the next year when the other motor fails. Our technicians test the surviving motor and give you an honest assessment.

Yes. Both Lippert and Schwintek systems have manual override procedures. For Lippert systems, there is typically a hand crank or a direct tool engagement point. For Schwintek systems, there is a manual override that allows driving the gear rack with a drill. We carry the correct override tools in our service vehicles and can retract or deploy a stuck slide-out manually while the motor is being replaced.

Yes. After motor replacement on a Schwintek system, the travel limits must be calibrated - the control board needs to know the full-in and full-out positions of the slide-out room. On Lippert systems, the motor may need to be synchronized with the other motors on multi-motor setups. Our technicians complete all necessary calibration as part of every motor replacement.
